HEIMEIER VENTIL TERM.1/2X3/4X D.C K OKOMITI 3879-02.000

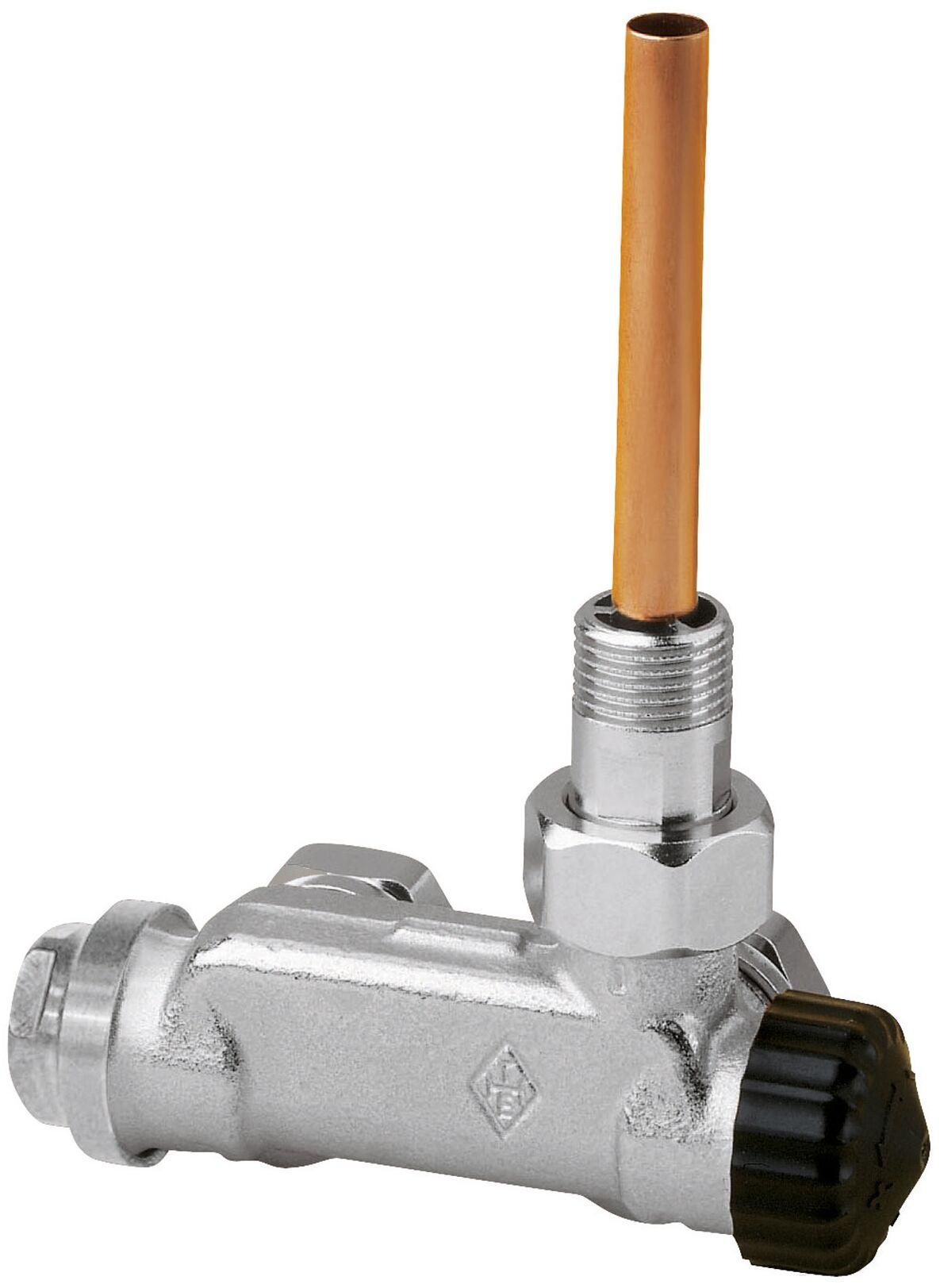

Heimeier EZ valve two-pipe system 3879-02.000
EZ valve made of corrosion-resistant gunmetal nickel-plated with immersion tube for Radiators with lower single-point connection
Versions in corner and straight form, each for one and two-pipe systems
the single-pipe version has a radiator share of 35% in the design case
the center distance of the pipe connections is 50 mm
the EZ Valves fit all thermostatic heads and actuators
the stainless steel spindle is provided with a double O-ring seal
the outer O-ring and the entire thermostatic insert can be exchanged under pressure
the return shut-off is operated with an 8 mm Allen key
With the EZ valve two-pipe it also takes on the function of the presetting
Spindle sealing by EPDM O-ring
Pipe side connection G 3/4
with compression fittings for plastic
Copper-
Precision steel or composite pipe
for Mixer taps only the associated
Use marked compression fittings (marking e.g. 15 THE)
Permissible operating temperature TB 120 ° C
permissible operating pressure PB 10 bar
